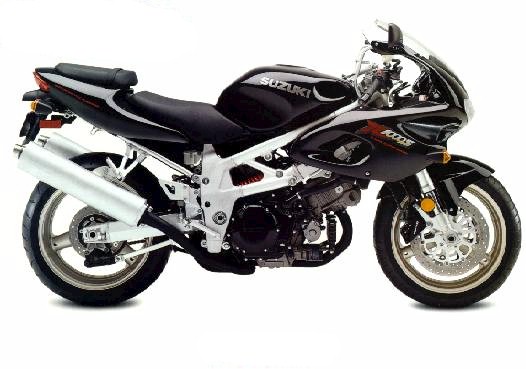

Suzuki TL-Series

1000S

Specificatons
Engine: 996cc, four-stroke, liquid cooled, 90 degree V-twin, DOHC, 8-valves, TSCC
Bore/Stroke: 98.0 x 66.0mm
Compression Ratio: 11.2:1
Carburetor: Electronic Fuel Injection
Transmission: 6-speed
Final Drive: #530 Chain
Suspension:
Front: Inverted telescopic, coil spring, fully adjustable spring preload, rebound and compression damping
Rear: Rotary damping system, fully adjustable spring preload compression and rebound damping
Brakes:
Front: Dual hydraulic disc
Rear: Single hydraulic disc
Wheels and Tires:
Front: 120/70 ZR-17
Rear: 190/50 ZR-17
Fuel Tank Capacity: 18 liter (4.8 gal.)
Overall Length: 2050mm (80.7 in.)
Overall Width: 735mm (30.0 in.)
Overall Height: 1150mm (45.2 in.)
Seat Height: 824mm (27.6 in.)
Ground Clearance: 130mm (5.1 in.)
Wheelbase: 1415mm (55.7 in.)
Dry Weight: 178kg (392 lbs.)
